Outdoor Waterproof mini SC Fiber Optic Patch Cord Huawei Compatible 10m, 20m
Description
Outdoor Huawei mini SC Fiber Optic Patch Cord manufactured by ANC International Co., Limited is widely used for RRU, base station, FTTA and outdoor waterproof conditions. It is small and easy to be installed, and the waterproof grade can be IP67. Huawei mini SC connector is suitable for 3.0-5.0mm round cables and FTTH drop cables. The Huawei mini SC connector end incorporates an SC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. The SC connectors mate to a standard adapter providing a common interface for FTTX applications.
ANC Fiber Optic is one of leading outdoor field fiber optic patch cord manufacturer. Specialize in all type of field fiber optic patch cord with waterproof connector, such as: Fullaxs Connector, Military Connector, PDLC, ODVA, ...
With more than 10 years of production exprerience, we supply standard telecom and broadcast television grade of patch cord for customers. All of goods are tested before shipment. We provide OEM and ODM service.
Features
Cost effective solution for in house termination
IP67 Water immersion and Dust protection for hash environment ·
Chemical Resistance ·
Simple assembly requiring no special tools ·
Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
Durable mechanical mating, minimum of 500 matings
Wide range of operational temperature for outside plant -40 to+85°C
SC/APC IL<0.3 typically.
100% optically tested to ensure quality performance assemblies
Low insertion loss and high return loss
Cable lengths and cable types optional
OEM and ODM customized production
Applications
Widely used in FTTA & FTTH
WIMAX and LTE Base Stations
Used for 3G 4G base station
BBU, RRU, RRH, LTE
Industrial outdoor applications
Aerospace & Defense

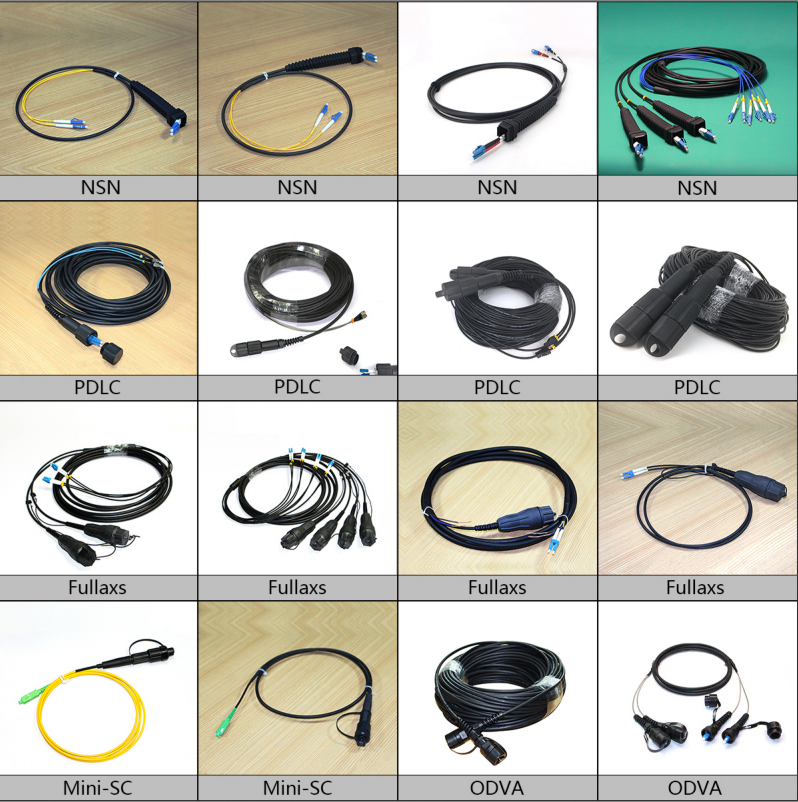

Huawei mini SC Fiber Optic Patch Cord Pictures
Technical Data
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB for SM/PC; ≥60dB for SM/APC |
| Mechanical life | 500cycles |
| Working temperature | -40°C~+70°C |
| Storage temperature | -40°C~+70°C |
| Operating temperature | -10°C~+50°C |
| Protection Level | IP67 |
| Cable Diameter | 3.0-5.0mm round cable or FTTH drop cable |
| Cable Jacket Material | Blakc LSZH or customized |
| Authentication | Meet with RoHS |
Outdoor Waterproof Fiber Optic Patch Cord for RRU, Base Station
