G657A2 G655 FTTH Optical Pigtail For Optical Termination Box
Description
SM G652D G657A1 G657A2 G655 SC APC SC PC 0.9mm Fiber Optic Pigtail for Splicing manufactured by ANC International Co., Limited provide a fast way to make factory terminations in the field. Factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line. The SC fiber optic pigtails are compliant to IEC, TIA/EIA, NTT and JIS specifications. SC is low cost but high performance, which makes it one of the most popular cables. We supply the single mode 9/125 SC fiber optic pigtail cables in G652D, G657A1, G657A2, G655 or customized fiber. The cable jacket can be easy strip or tight buffer or semi-tight. Custom lengths, connector combinations and polishes are available.
Specification
Insert-pull, key-oriented coupling mechanism that allows high repeatable, low-loss connection
Different cable color optional
The jacket can be tight buffer, easy-strip or semi-tight;
PC/UPC/APC polishing optional
Features
Company with Telcodia GR-326 Core Specification
RoHS compliant
Usage
FTTH Network
Optical termination box
Fiber Optic Telecommunication
Fiber Distribution Frame
Cable Television
Technical Data
Parameter for OM1/OM2/OM3/OM4/OM5 SC PC multi-mode pigtail
| Characteristics | Unit | Value/Performance |
| Insertion Loss (IL) | dB | ≤0.2 (typical); ≤0.3 (maximum) |
| Return Loss (RL) | dB | PC≥35 typical |
| Operating Wavelength | nm | 850nm |
| Mating | | ≥500 times |
| Tensile | N | 100 |
| RoHS Compliant | | Yes |
| Operating Temperature | ℃ | -20~+80 |
Advantages Of Fiber Optic Splitter
1. Adopt high strength stainless steel, pass salt spray test
2. Ferrule core is less than 0.2um
3. Adopt 100% new raw material, ROHS compliance
4. Low Insertion loss
5. Low PDL Compact Design
6. Good channel-to-channel uniformity
7. Wide Operating Wavelength: from 1260nm to 1650nm
8. Wide Operating Temperature: from -40℃ to 85℃
Product Tags:
|
|

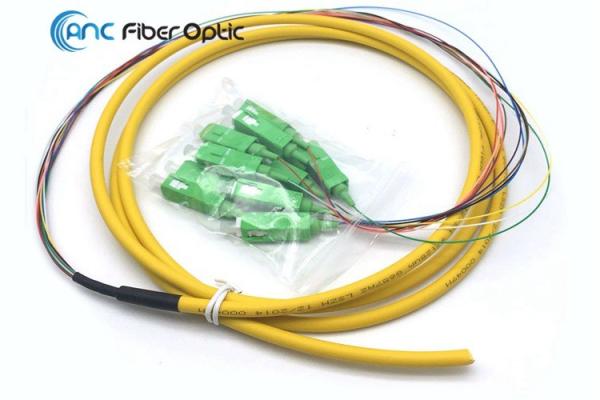

Sm G652d Fiber Optic Pigtail Sc / Apc Connector Images
|
